Iconopower manufactures a range of high quality precision press-pack semiconductor clamps accommodating devices having mounting surfaces from 19mm to 90 mm with forces ranging from 4kN to 110kN. The clamps utilize Belleville washers using a series & parallel arrangement to achieve the required clamping force. Insulators extruded from a high performance crystalline polymer provide dielectric and mechanical compressive strength and also allows for high temperature operation.

Iconopower also distributes Westcode box clamps suitable for devices with mounting surface diameters of 19mm, 25mm and 34mm with forces ranging from 4kN to 15kN.

Bar clamp catalogue
Power semiconductor bar clamp catalogue
Open PDF button

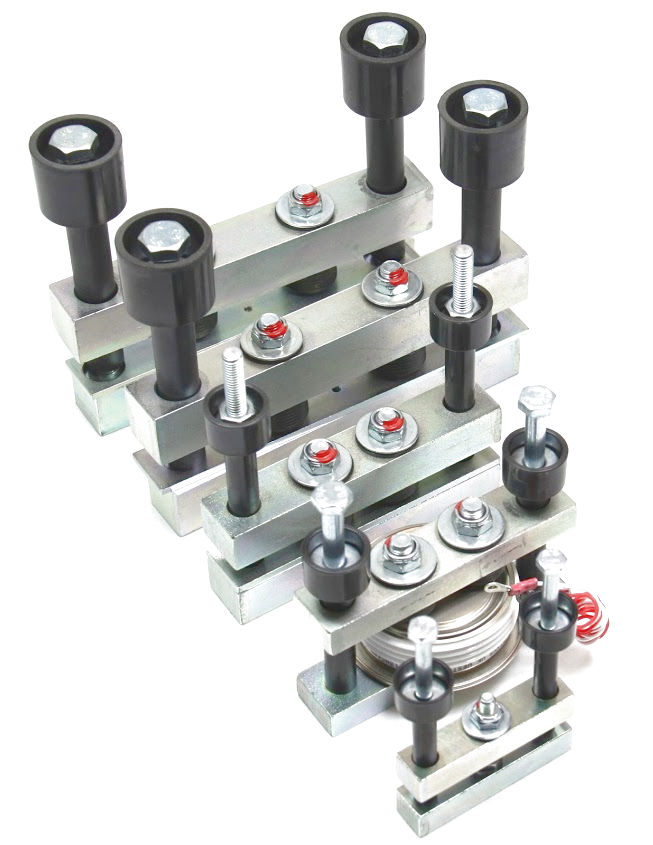

Bar clamps
Power semiconductor bar clamps
Browse button

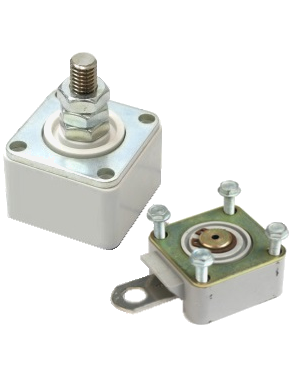

Box clamps
Westcode box clamps
Browse button
Clamp selector form
Iconopower power semiconductor bar clamp selector form
Open PDF button

For more information please download the clamp selector form and return the completed document by e-mail or fax.
